Stainless I-Beam
Stainless I-beam is a structural steel profile shaped like the letter "I," made from stainless steel. It consists of a vertical web and two horizontal flanges, providing excellent load-bearing capacity while offering superior corrosion resistance compared to carbon steel I-beams.
+8613953120553
Contact Us
Product Parameters

Features

Material Grades:     Common grades: 304, 304L, 316, 316L, 321, 2205 (Duplex).
    316/L is ideal for marine & chemical environments (high molybdenum   content).
    Duplex 2205 offers higher strength and chloride resistance.

    Advantages:     Corrosion Resistance: Excellent performance in humid, acidic, or saline   conditions.
    High Strength: Suitable for structural and load-bearing applications.
    Aesthetic Finish: Polished or brushed options for architectural use.
    Low Maintenance: Does not require protective coatings like carbon   steel.


    Standard Sizes & Specifications:     Available in standard (S), wide-flange (W), and lightweight (L)   profiles.
    Dimensions follow ASTM A554, EN 10088, or custom specifications.
    Typical sizes: 3" to 12" (flange width), varying web   thicknesses.

    Fabrication & Welding:     Can be cut, drilled, and welded (TIG/MIG recommended).
    Requires proper techniques to avoid weld decay (e.g., low-carbon 304L/316L   for welding).

Chemical composition

GradeC (≤)Si (≤)Mn (≤)P (≤)S (≤)CrNiMoOther elementsType
2010.1515.5-7.50.060.0316-183.5-5.5-N≤0.25Austenite   (low nickel)
3030.15120.20.15↑17-198-10-Se/S   improves machinabilityFree-cutting   austenite
3040.080.7520.0450.0318-208-10.5--Austenite
304L0.030.7520.0450.0318-208-12-Ultra-low   carbon (resistance to intergranular corrosion)Austenite   (low carbon)
3050.120.7520.0450.0317-1910.5-13-High   nickel (reduces cold work hardening)Austenite
3090.2120.0450.0322-2412-15-High   temperature oxidation resistanceAustenite   (heat resistant)
309S0.08120.0450.0322-2412-15-Low   carbon version 309Austenite   (heat resistant)
310S0.081.520.0450.0324-2619-22-Ultra-high   temperature resistance (1150℃)Austenite   (heat resistant)
3160.080.7520.0450.0316-1810-142.0-3.0Pitting   resistance (Mo)Austenite   (corrosion resistant)
316L0.030.7520.0450.0316-1810-142.0-3.0Ultra-low   carbon (resistance to intergranular corrosion)Austenite   (corrosion resistant)
316Ti0.080.7520.0450.0316-1810-142.0-3.0Ti≥5×C   (stabilization and anti-sensitization)Austenite   (stabilized)
3210.080.7520.0450.0317-199-12-Ti≥5×C   (resistance to intergranular corrosion)Austenite   (stabilized)
3470.080.7520.0450.0317-199-13-Nb+Ta≥10×C   (stabilization)Austenite   (stabilized)
4090.08110.0450.0310.5-11.70.5-Ti   0.15-0.5 (stabilization)Ferrite   (auto exhaust)
4100.15110.040.0311.5-13.50.75--Martensite   (knife)
4200.15↑110.040.0312-140.75-High   carbon (higher hardness)Martensite   (scalpel)
4300.120.7510.040.0316-180.75--Ferrite   (decorative)
904L0.02120.0450.03519-2323-284.0-5.0Cu   1.0-2.0 (acid resistance)Super   austenite


Mechanical properties

GradeTensile Strength   (MPa)Yield Strength   (MPa)Elongation (%)Hardness (HB)Impact toughnessOther   Features
201520-750≥27540-55≤230mediumLow   nickel and high manganese, fast cold work hardening
303500-700≥19035-50≤200LowEasy   to cut, corrosion resistance slightly lower than 304
304515-690≥20540-60≤200highGeneral   austenite, non-magnetic
304L485-655≥17045-60≤200highLow   carbon, intergranular corrosion resistance
305500-700≥18050-60≤200highHigh   nickel, low cold work hardening rate
309515-690≥20540-50≤200mediumHigh   temperature oxidation resistance (≤1000℃)
309S515-690≥20540-50≤200mediumLow   carbon version of 309, anti-sensitization
310S515-690≥20540-50≤200mediumUltra-high   temperature resistance (≤1150℃)
316515-690≥20540-60≤200highContains   Mo, pitting and creep resistance
316L485-655≥17045-60≤200highUltra-low   carbon, intergranular corrosion resistance
316Ti515-690≥20540-60≤200highTi   stabilized, anti-sensitization
321515-690≥20540-55≤200highTi   stabilized, high temperature resistance (800℃)
347515-690≥20540-50≤200highNb   stabilized, anti-sensitization
409380-550≥17020-30≤180LowFerrite,   automotive exhaust system
410480-620≥27520-25≤200LowMartensite,   heat treatable (HRC≥50)
420550-750≥34515-20≤230LowHigh   carbon martensite, HRC up to 55
430450-600≥20520-25≤200LowFerrite,   decorative use
904L490-690≥22045-50≤200highSuper   austenite, strong acid resistance
Common Applications


Marine & Offshore: Shipbuilding, piers, desalination plants.
    Chemical & Pharmaceutical: Support frames, tanks, piping systems.
    Construction: Bridges,   high-end buildings, industrial platforms.
    Food Processing & Medical: Hygienic, rust-free structural supports.


Product Display

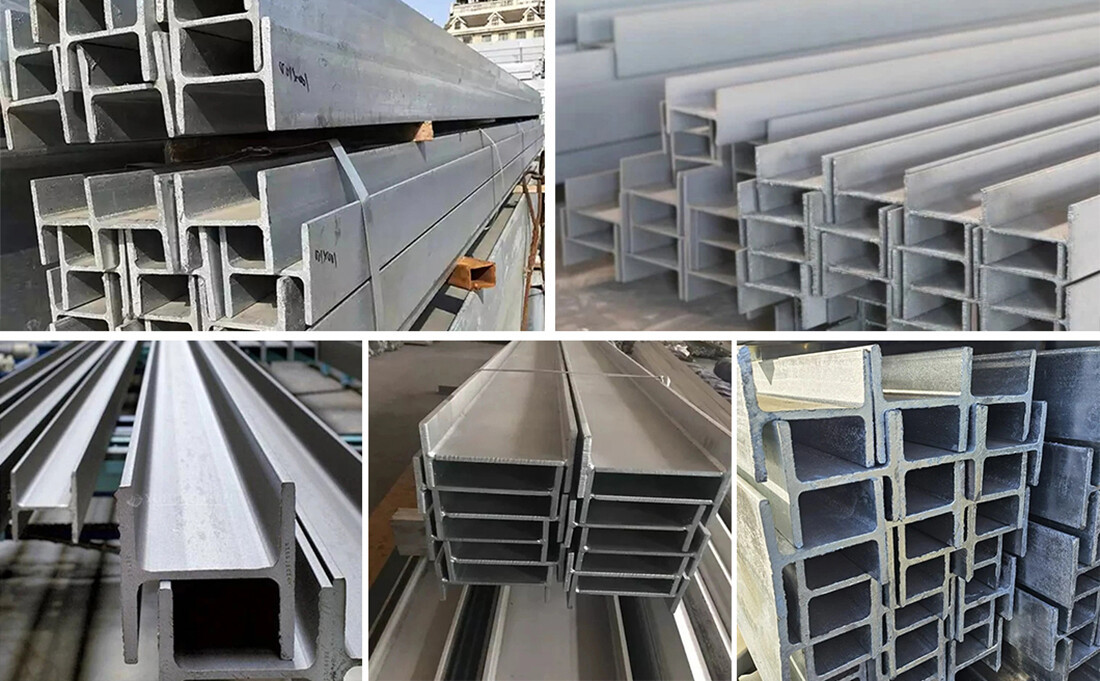

I beam.jpg
