Stainless Angle Steel/Bar

Stainless angle steel (also called stainless steel angle bar) is an L-shaped structural profile made from stainless steel, with two perpendicular legs of equal or unequal lengths. It combines high strength, corrosion resistance, and versatility, making it a popular choice for construction, industrial, and architectural applications.

+8613953120553

Contact Us

Product Parameters

Features

1. Common Grades

304/304L: General-purpose, good corrosion resistance.

316/316L: Superior corrosion resistance (ideal for marine/chemical use).

Duplex (2205): High strength & chloride resistance.

430: Cost-effective but less corrosion-resistant.

2. Types

Equal Angle: Both legs are the same length (e.g., 25×25mm, 50×50mm).

Unequal Angle: Legs differ in length (e.g., 30×20mm, 50×30mm).

3. Advantages

Corrosion Resistance – Resists rust, acids, and moisture.

High Strength – Suitable for structural support and framing.

Aesthetic Appeal – Polished or brushed finishes for architectural use.

Weldability & Fabrication – Easy to cut, bend, and weld (TIG/MIG recommended).

Chemical composition

Grade	C (≤)	Si (≤)	Mn (≤)	P (≤)	S (≤)	Cr	Ni	Mo	Other elements	Type
201	0.15	1	5.5-7.5	0.06	0.03	16-18	3.5-5.5	-	N≤0.25	Austenite (low nickel)
303	0.15	1	2	0.2	0.15↑	17-19	8-10	-	Se/S improves machinability	Free-cutting austenite
304	0.08	0.75	2	0.045	0.03	18-20	8-10.5	-	-	Austenite
304L	0.03	0.75	2	0.045	0.03	18-20	8-12	-	Ultra-low carbon (resistance to intergranular corrosion)	Austenite (low carbon)
305	0.12	0.75	2	0.045	0.03	17-19	10.5-13	-	High nickel (reduces cold work hardening)	Austenite
309	0.2	1	2	0.045	0.03	22-24	12-15	-	High temperature oxidation resistance	Austenite (heat resistant)
309S	0.08	1	2	0.045	0.03	22-24	12-15	-	Low carbon version 309	Austenite (heat resistant)
310S	0.08	1.5	2	0.045	0.03	24-26	19-22	-	Ultra-high temperature resistance (1150℃)	Austenite (heat resistant)
316	0.08	0.75	2	0.045	0.03	16-18	10-14	2.0-3.0	Pitting resistance (Mo)	Austenite (corrosion resistant)
316L	0.03	0.75	2	0.045	0.03	16-18	10-14	2.0-3.0	Ultra-low carbon (resistance to intergranular corrosion)	Austenite (corrosion resistant)
316Ti	0.08	0.75	2	0.045	0.03	16-18	10-14	2.0-3.0	Ti≥5×C (stabilization and anti-sensitization)	Austenite (stabilized)
321	0.08	0.75	2	0.045	0.03	17-19	9-12	-	Ti≥5×C (resistance to intergranular corrosion)	Austenite (stabilized)
347	0.08	0.75	2	0.045	0.03	17-19	9-13	-	Nb+Ta≥10×C (stabilization)	Austenite (stabilized)
409	0.08	1	1	0.045	0.03	10.5-11.7	0.5	-	Ti 0.15-0.5 (stabilization)	Ferrite (auto exhaust)
410	0.15	1	1	0.04	0.03	11.5-13.5	0.75	-	-	Martensite (knife)
420	0.15↑	1	1	0.04	0.03	12-14	0.75	-	High carbon (higher hardness)	Martensite (scalpel)
430	0.12	0.75	1	0.04	0.03	16-18	0.75	-	-	Ferrite (decorative)
904L	0.02	1	2	0.045	0.035	19-23	23-28	4.0-5.0	Cu 1.0-2.0 (acid resistance)	Super austenite

Mechanical properties

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)	Impact toughness	Other Features
201	520-750	≥275	40-55	≤230	medium	Low nickel and high manganese, fast cold work hardening
303	500-700	≥190	35-50	≤200	Low	Easy to cut, corrosion resistance slightly lower than 304
304	515-690	≥205	40-60	≤200	high	General austenite, non-magnetic
304L	485-655	≥170	45-60	≤200	high	Low carbon, intergranular corrosion resistance
305	500-700	≥180	50-60	≤200	high	High nickel, low cold work hardening rate
309	515-690	≥205	40-50	≤200	medium	High temperature oxidation resistance (≤1000℃)
309S	515-690	≥205	40-50	≤200	medium	Low carbon version of 309, anti-sensitization
310S	515-690	≥205	40-50	≤200	medium	Ultra-high temperature resistance (≤1150℃)
316	515-690	≥205	40-60	≤200	high	Contains Mo, pitting and creep resistance
316L	485-655	≥170	45-60	≤200	high	Ultra-low carbon, intergranular corrosion resistance
316Ti	515-690	≥205	40-60	≤200	high	Ti stabilized, anti-sensitization
321	515-690	≥205	40-55	≤200	high	Ti stabilized, high temperature resistance (800℃)
347	515-690	≥205	40-50	≤200	high	Nb stabilized, anti-sensitization
409	380-550	≥170	20-30	≤180	Low	Ferrite, automotive exhaust system
410	480-620	≥275	20-25	≤200	Low	Martensite, heat treatable (HRC≥50)
420	550-750	≥345	15-20	≤230	Low	High carbon martensite, HRC up to 55
430	450-600	≥205	20-25	≤200	Low	Ferrite, decorative use
904L	490-690	≥220	45-50	≤200	high	Super austenite, strong acid resistance

Common Applications

Marine & Offshore: Shipbuilding, piers, desalination plants.
Chemical & Pharmaceutical: Support frames, tanks, piping systems.
Construction: Bridges, high-end buildings, industrial platforms.
Food Processing & Medical: Hygienic, rust-free structural supports.

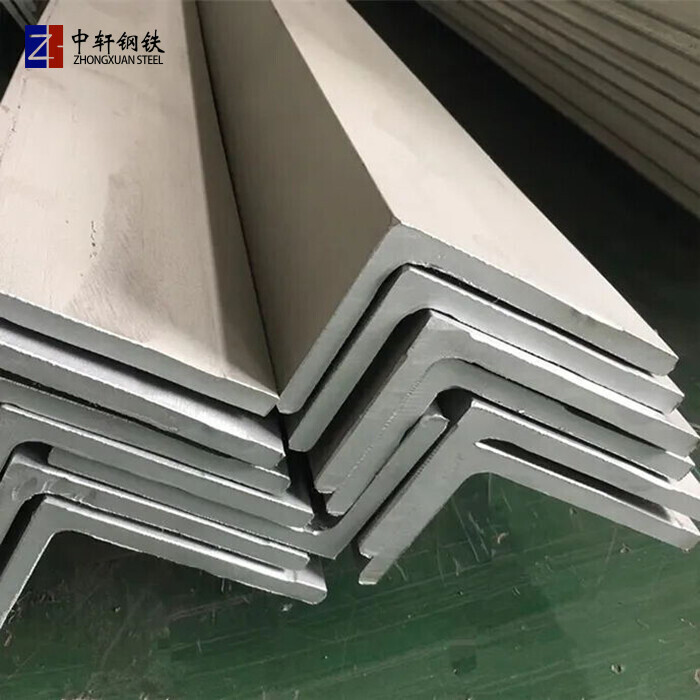

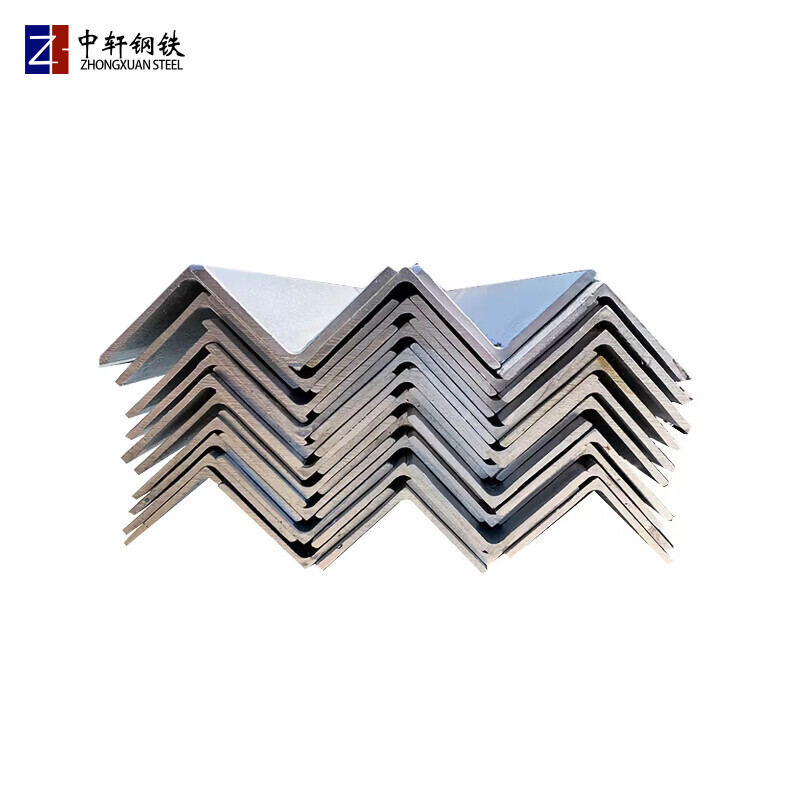

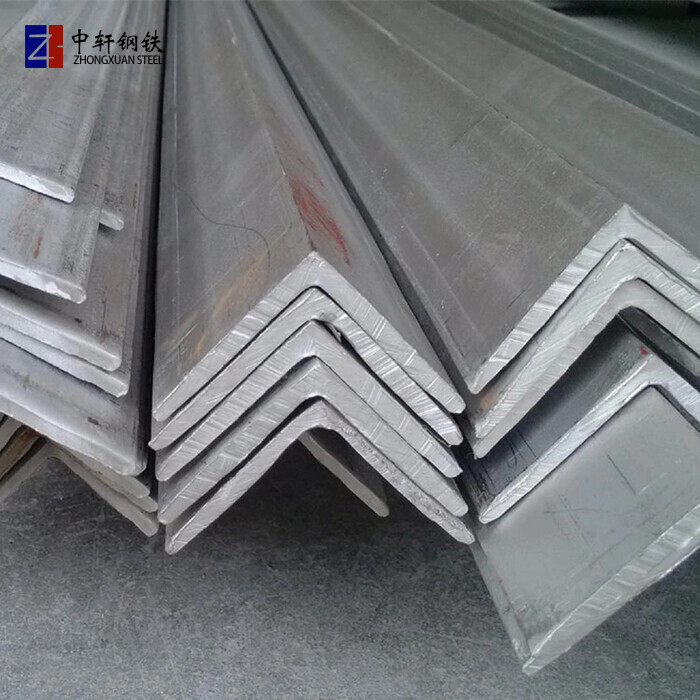

Product Display
